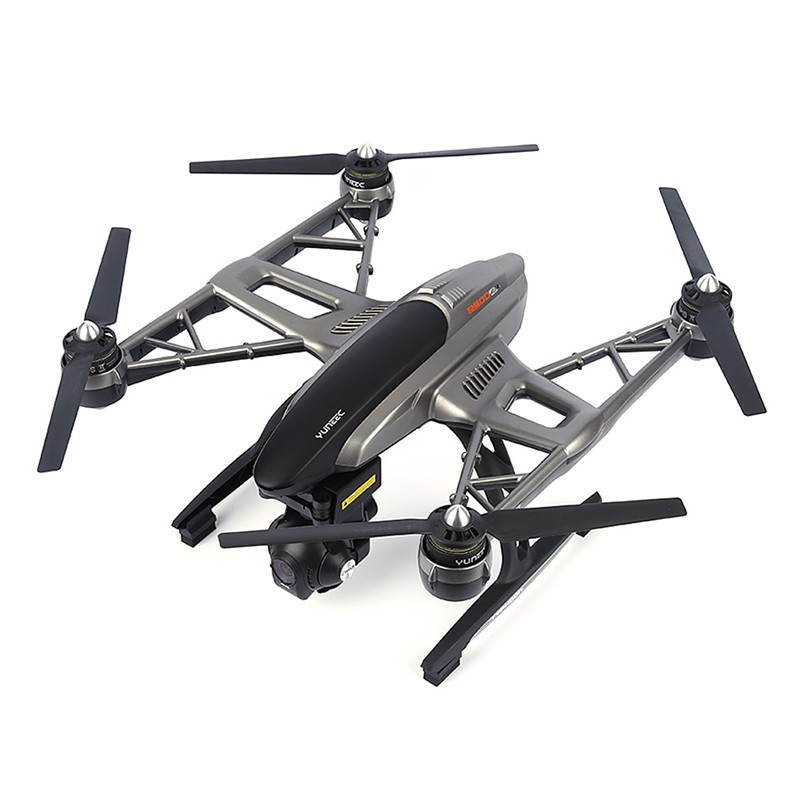

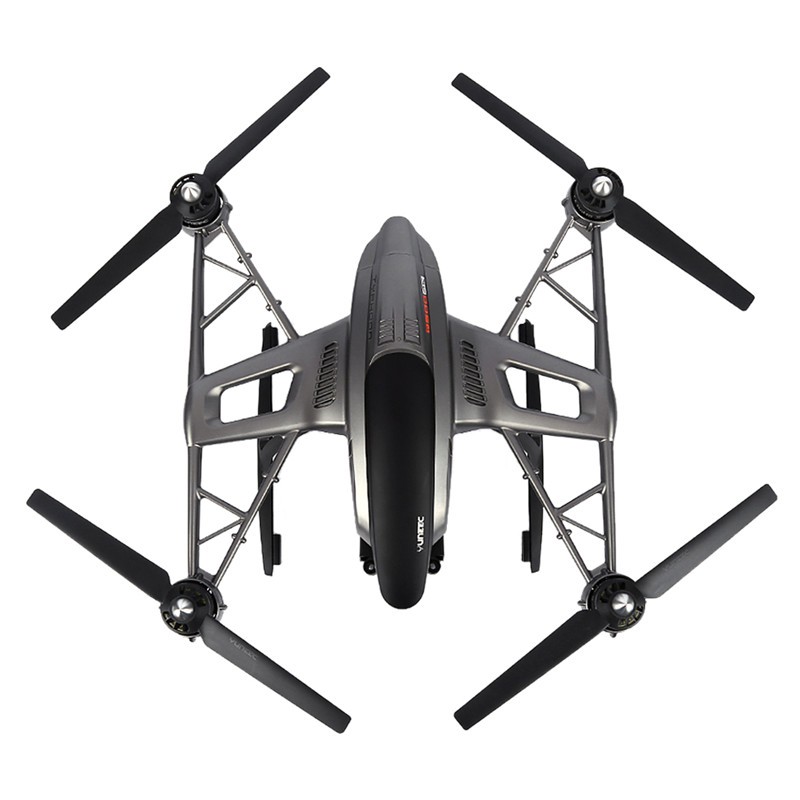

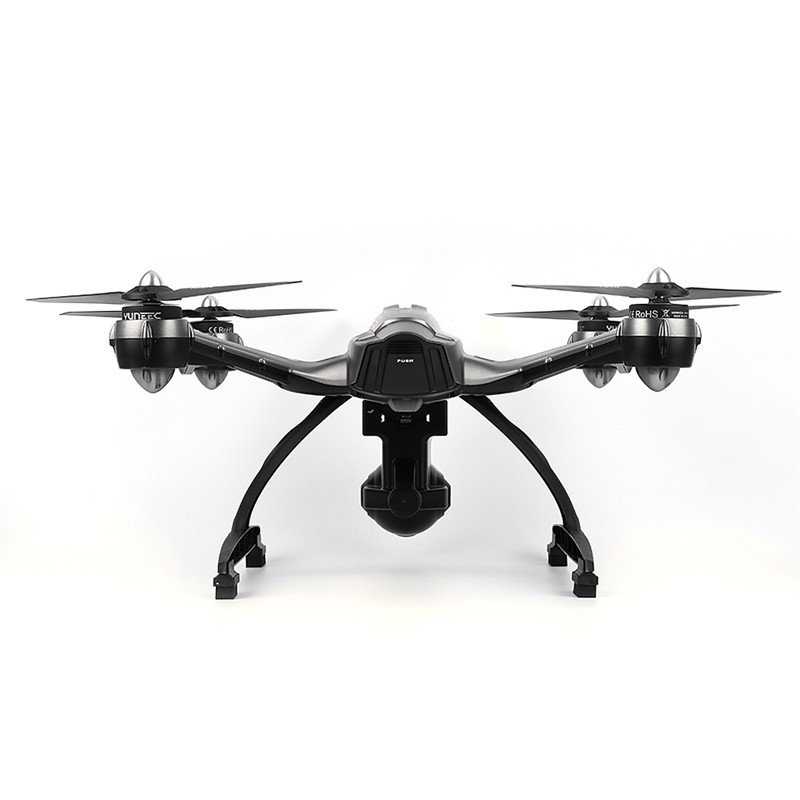

Yuneec Q500 4K Professional Quadcopter Drone with Video Camera RC Quadcopter RTF live HD view & Brushless/GPS system
Factory-assembled, test-flown, ready to fly and film out of the box

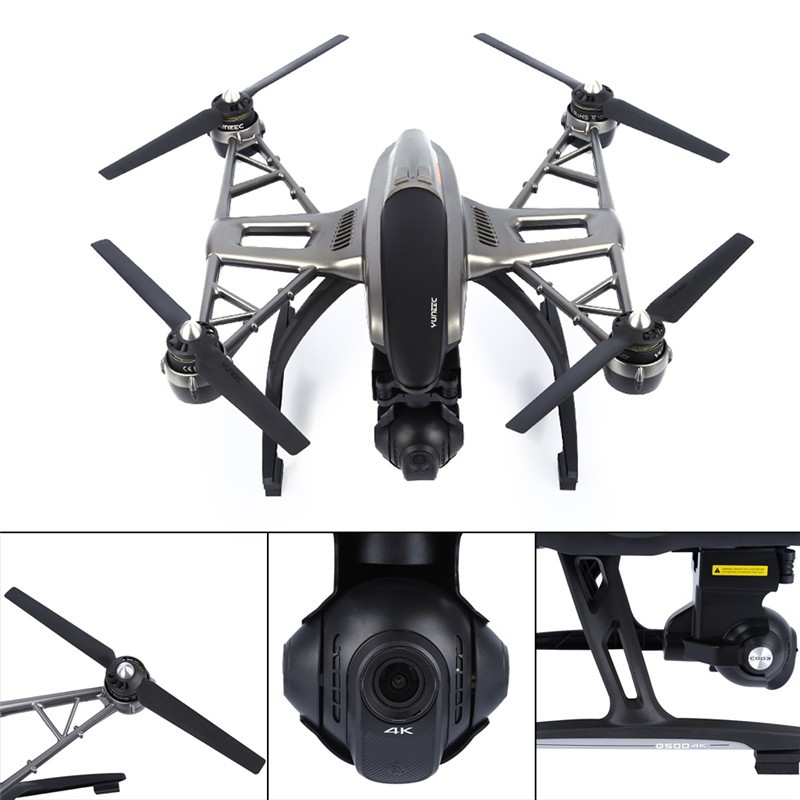

The 3-axis anti-vibration CGO3 gimbal camera and the optimized fixed focus lens capture silky smooth videos and crisp images, which are stored to the internal memory card and streamed in real time to the ST10+ screen. The camera features a 115 degree wide-angle no-distortion lens and the ability to shoot slow motion video at 1080p 120 FPS. All the controls expected by professionals are standard.
Video resolution and white balance can be adjusted, while light exposure can be controlled automatically or manually, including ISO and Shutter Speed.
The camera also allows users to take pictures while recording video, and the still images are available in RAW (DNG) and JPEG format.

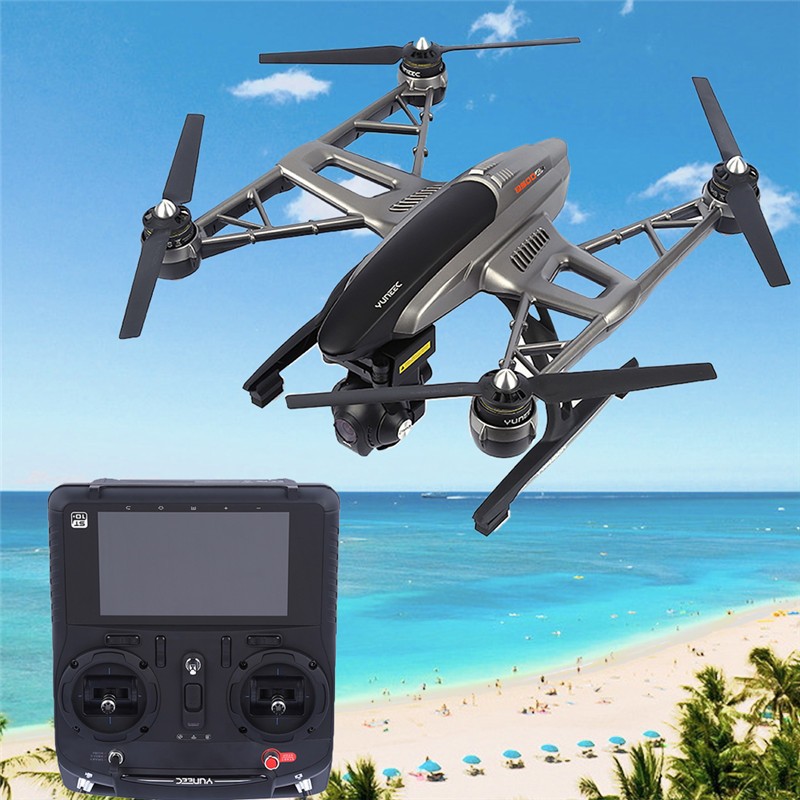

The ST10+ personal ground station is a 10-channel 2.4GHz RC transmitter that supports a 5.8GHz video downlink delivering streaming video to the built-in screen. Real time telemetry data made available on the screen during flight includes flight mode, altitude, speed over ground, distance from home, camera status, GPS position coordinates, number of GPS satellites available and aircraft battery status.
The Steady Grip handheld device ensures ground shots are as smooth as those taken from the air. The CGO3 mobile APP allows the Steady Grip user to capture images, shoot videos and control the CGO3 gimbal camera.
Once the Typhoon Q500 4K is in the air, it is really fun to fly. It has two flying modes to choose from, known as Smart and Angle. Each mode is intuitive and easy to grasp.
Smart Mode is typically used for new fliers, as it uses the built-in GPS to establish a 26 foot (8 meter) diameter "SAFE Circle" around the pilot, ensuring the drone remains at a safe distance from the pilot. It also creates a "geo-fence" that keeps the Typhoon Q500 4K from traveling farther than 300 feet (91 meters) from the fliers position. In Smart Mode, the drone will never get too close to the pilot or wander too far away. Further, the Typhoon Q500 4K will always move in the direction the control stick is pushed relative to the pilot. If you push the stick to the left, the Q500 4K will always move to the left, regardless of the direction the nose is pointing.
Angle Mode is typically used by more experienced pilots.
The Typhoon Q500 4Kwill move in the direction the control stick is pushed relativeto the front or nose of the aircraft. It also gives the pilot more control authority by turning off the SAFE Circle and allowing steeper bank and pitch angles. This makes it possible to get faster panning and tracking shots when shooting high-energy action video. There is no "geo-fence" in Angle Mode.

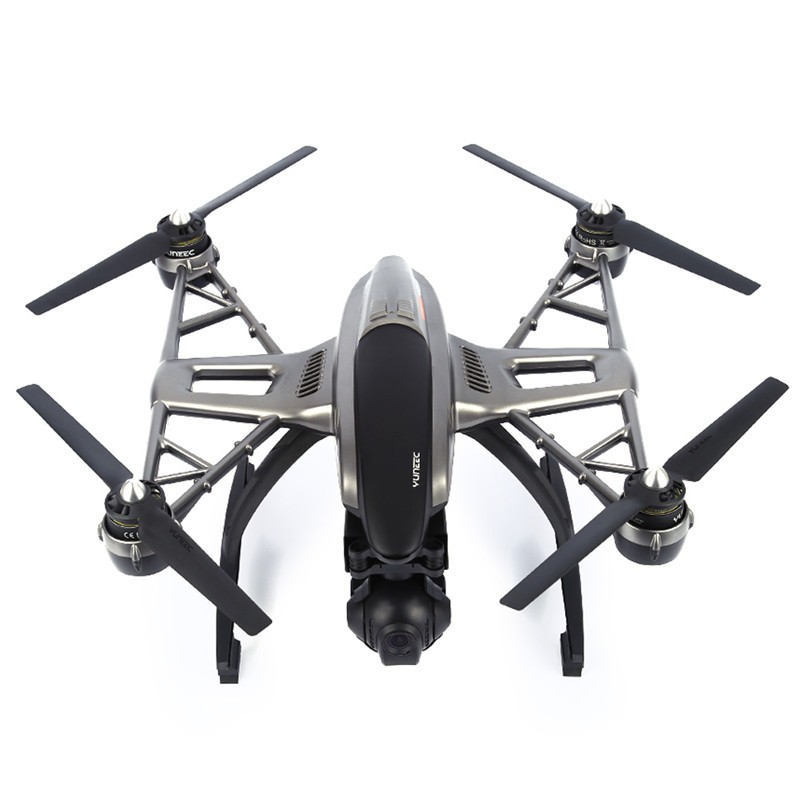

TYPHOON Q500 Multicopter
Flight Time: Up to 25 Minutes
Dimension: 9.45 in (210mm) x 16.54 in (420mm)
Diagonal Motor to Motor Distance: 20 in (510mm)
Pprpeller/Main Rotor Diameter: 13.0 in (330mm)
Weight (Without Camera/Payload): 40.0 oz (1130g)
Maximum Takeoff Weight With CGO3: 60.0 oz (1700g)
Battery: 5400mAh 3S 11.1V LiPo (included)
Charger: 3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter
Transmitter: 10-channel 2.4GHz with 5.8GHz video downlink (included)
Maximum Flying Altitude: Default 400 Feet Above Ground Level (Adjustable via the Q500 GUI)
Radio control frequency band: 2.4GHz

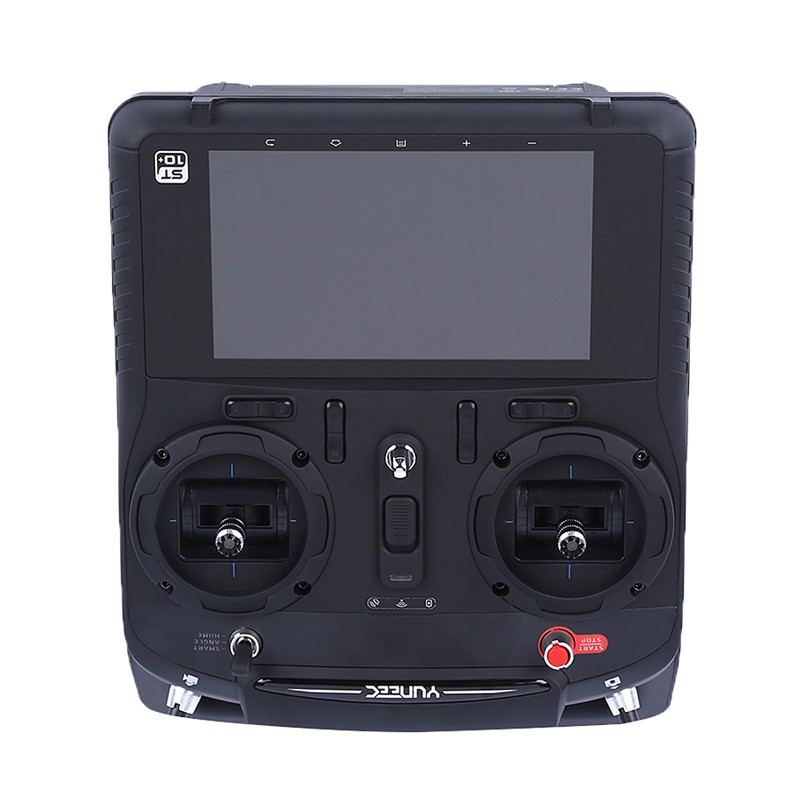

ST10+ Personal Ground Station:
Number of channels: 10
Operation system: Android
Screen Size: 5.5"
Screen Resolution: 854 x 480
Radio control frequency band: 2.4GHz
Control Transmission Distance/Range (Optimum Conditions): FCC Compliance: Up to 800m (2624.67 ft) / CE Compliance: Up to 400m (1312.34 ft)
ROBUST Radio control Modulation: Yuneec Protocol
Video link frequency band: 5.8GHz
Flight Systems Telemetry Data On Screen Display(OSD): Yes
Tactile and Audible Feedback: Yes
BUILT-IN LIPO BATTERY VOLTAGE / CAPACITY: 3.6V/5200mAh 18.72Wh
CGO3 Gimbal Camera:
Dimension: 4.5×1.4×2.9in (115x135x74mm)
Weight: 6.9oz (195g)
SENSOR: 1/2.3" CMOS
EFFECTIVE PIXELS: 12 Megapixels
CAMERA LENS: 0.6in (14mm)/F2.8 1.4in/35mm No Distortion
VIDEO FOV: 115 Degree
ELECTRONIC SHUTTER: 1/30 – 1/8000
WORKING TEMPERATURE: -10C- 40C
POWER CONSUMPTION: 10W
VIDEO TRANSMISSION RANGE: Up to 500m (1640ft)
TRANSMISSION SYSTEM: 5.2Ghz – 5.8Ghz
VIDEO UHD: 4K at 30FPS, 2.7K at 30FPS, 2.5K at 30FPS
FULL HD: 1080p at 24/25/30/48/50/60/120FPS
HD: 720p at 24/25/30/48/50/60/120FPS
Dimension: 8.78 in (223mm) x 2.95 in (75mm) x 7.13 in (181mm)
Weight (Without Camera/Gimbal): 13.9oz (395g)
Compatible Camera: CGO2 Series / GoPro Hero4 Black with GB203 Gimbal
Adapter plug: US

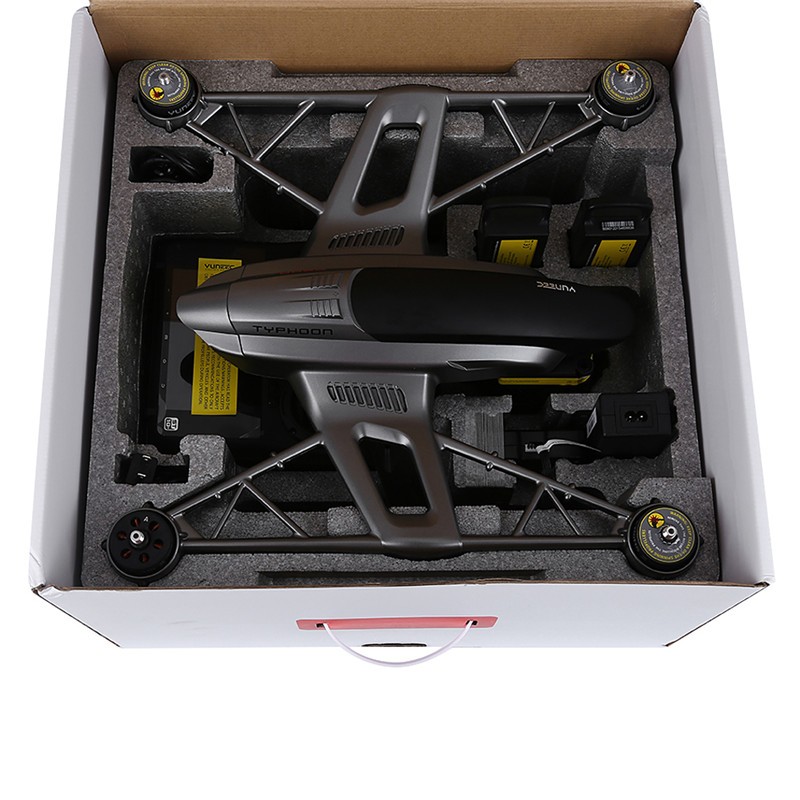

Box material: Carton Box (color-printed)

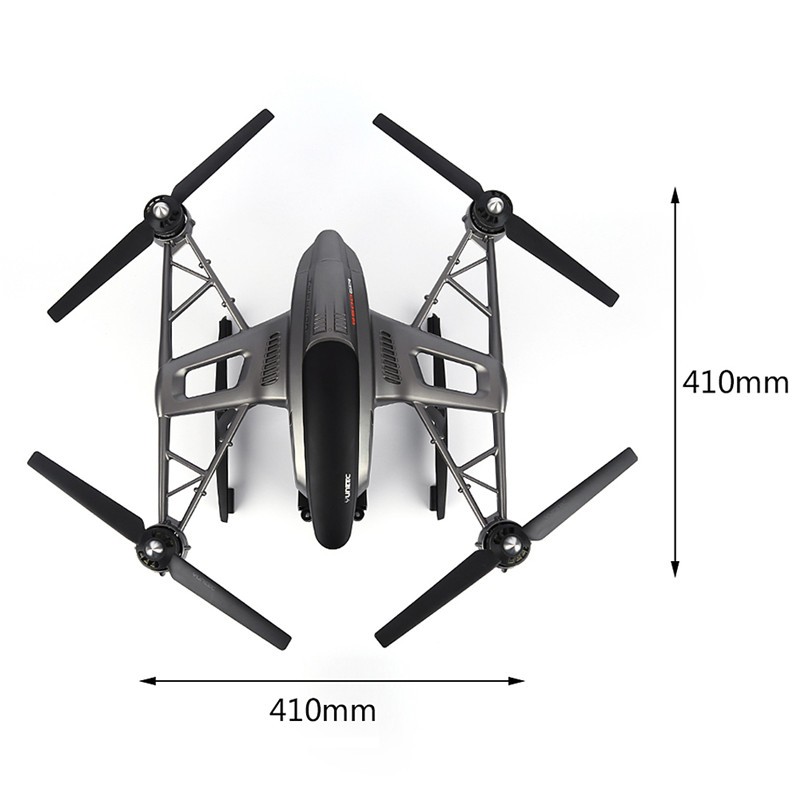

Flight size: 410 x 410x 220mm
Net weight: 4233g

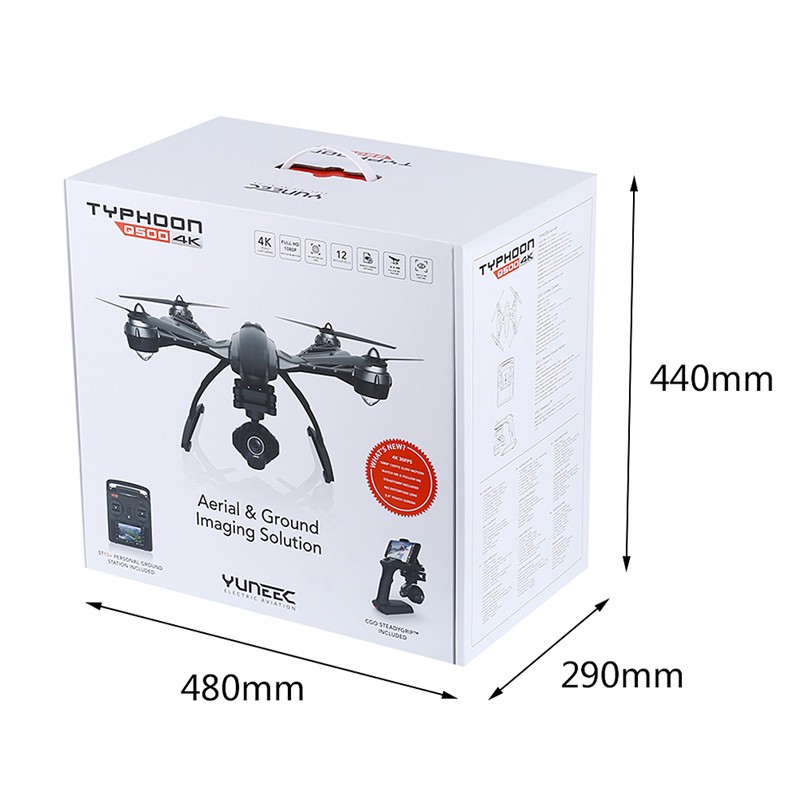

Package size: 480*290*440 mm
Package weight: 6365g
How to use:
1. installed phone CGO3 software After the bottom
2. head mounted 8 5 batteries power;
3. wifi phone search CGO3, password 1234567890;
4. after the connection is successful, open the phone CGO3 software, click into the Camera, PTZ operations can be carried out hand;
5. Mode key functions: green light for the PTZ auto-mode; green light flashes as PTZ control up and down through the pulley rotation
6. Camera camera and video features by the mobile phone APP control (to change the resolution, environmental effects)
