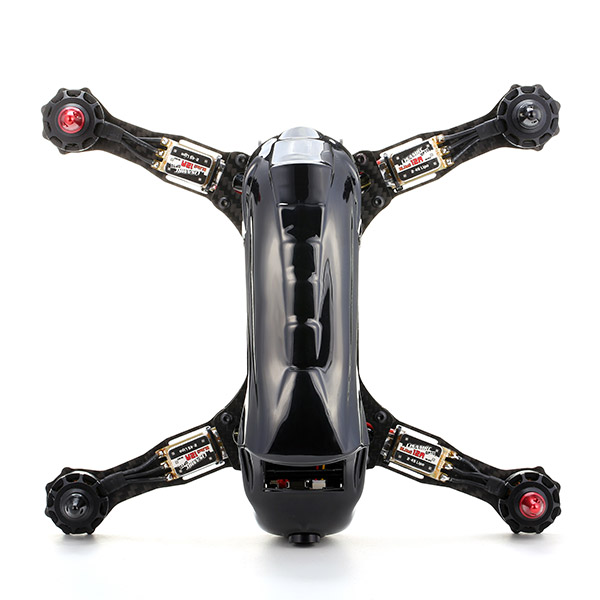

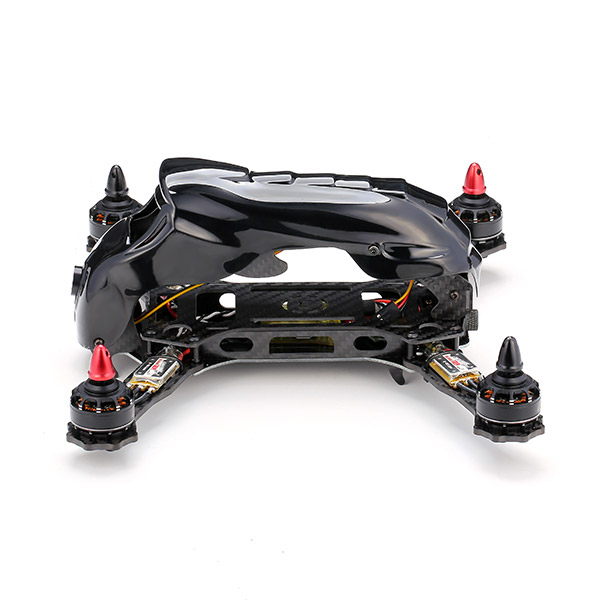

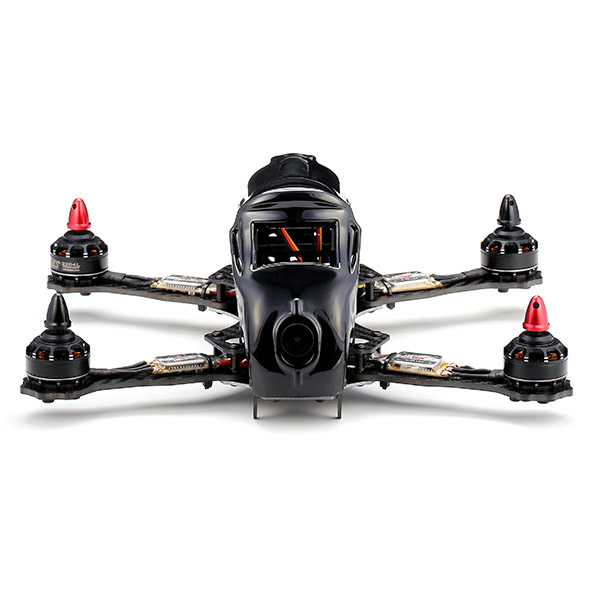

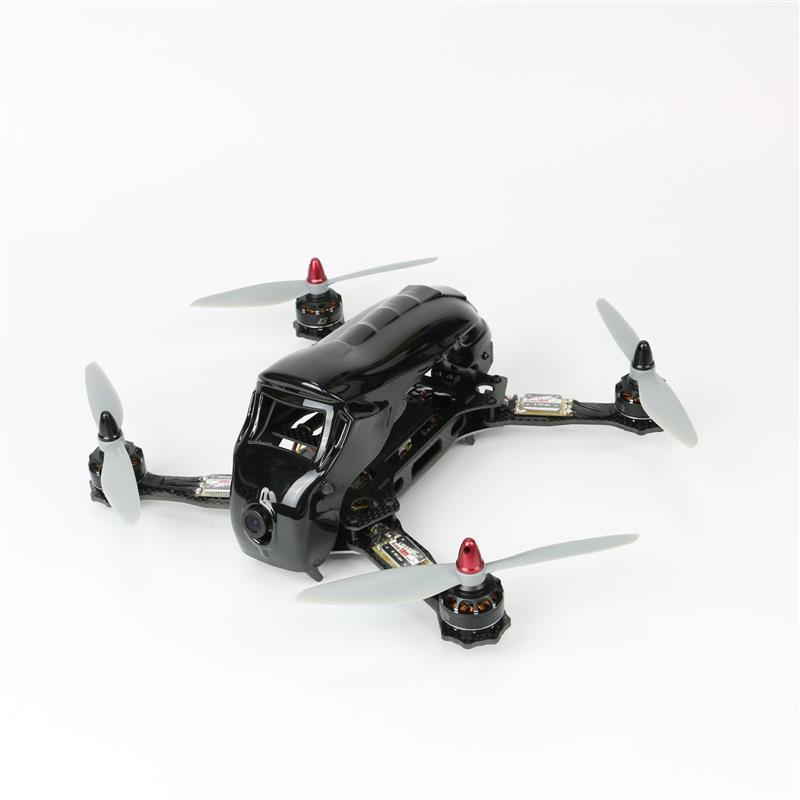

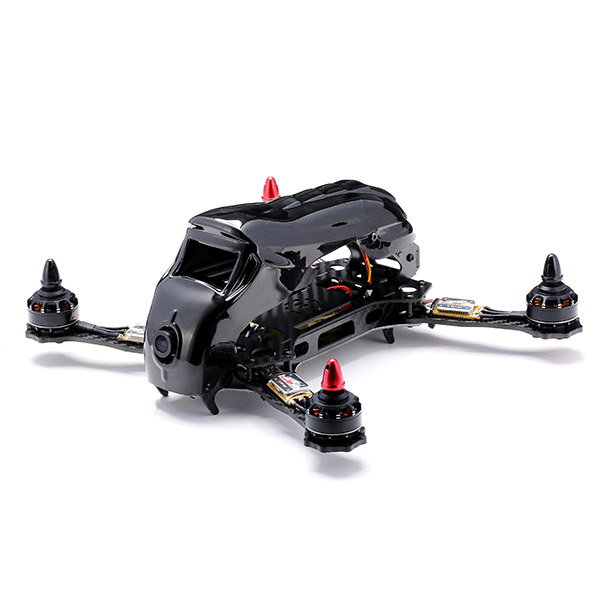

LISAM KEEL-270 270mm Carbon Fiber FPV Racing …


Buy Now

SKU: 32604643602 Category:

Product Description

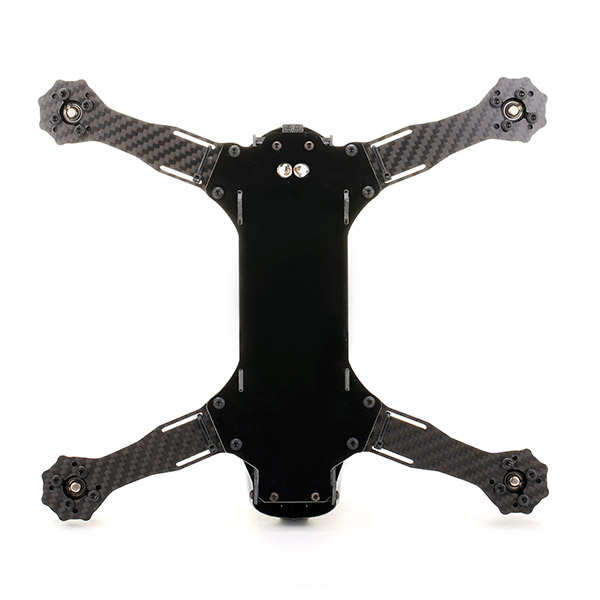

Brand: Lisam
Model: KEEL-270
Wheelbase: 270mm
Weight: 145g
Material: 3k Carbon Fiber
Size: 224 x 211 x 85mm

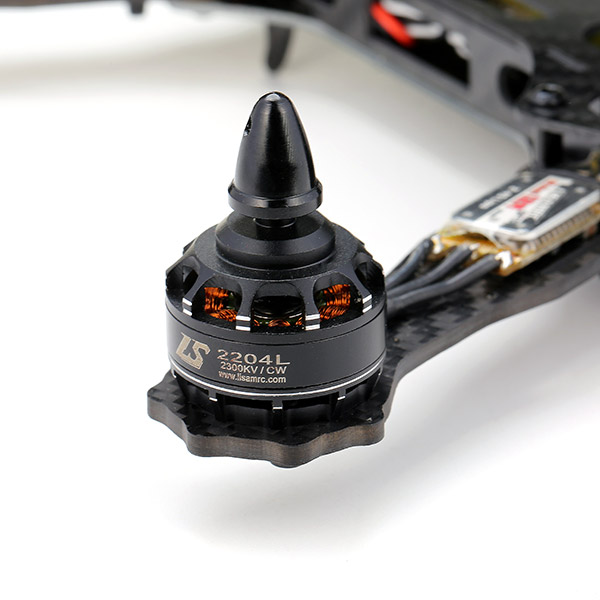

Model: 2204L
KV (rpm / v): 2300
Batteries number (cell): 2-4S
Weight: 21g
Height: 34.6mm
Diameter: 28mm
Propeller Aperture: 5mm
Lisam oneshot125 ESC 12A:
Continuous operating current: 12A
Instantaneous current: 20A (5 seconds)
Number lithium applicable section: 2-4S
Size: 31 x 15 x 5mm
Weight (with cord): 7.4g
BEC Linear: No
Can Programming: Yes
Flight Controller:
Flight Control Model: MICRO CC3D
Size: 44 x 20 x 13mm
Weight: 6.7g
UBEC 5V power supply module:
Input voltage 4.5V ~ 28V
Output voltage 0.8V ~ 20V
Output current 3A (maximum)
Conversion efficiency of 96% (maximum)
Output Ripple <30mV
Switching frequency 1.5MHz (highest)
Operating temperature -45 degree~ + 85 degree
Size 22mm x 17mm x 4mm
5030 5045 6030 6045 high-speed Propellers

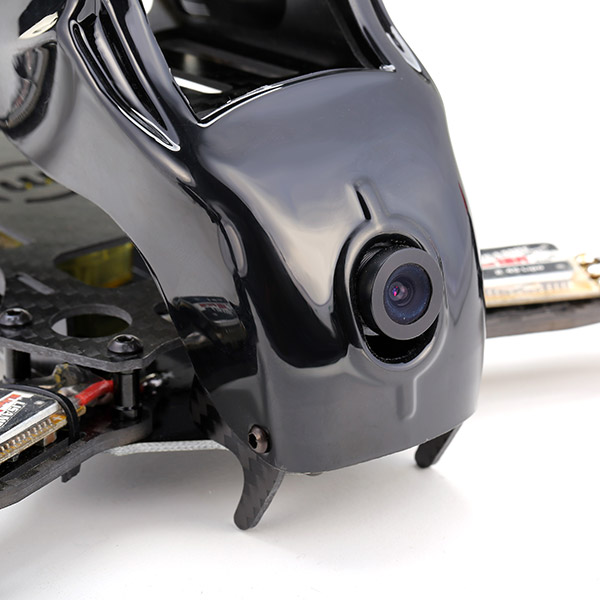

Item Name: 800TVL Camera
Degree: 120
Shot: 2.8mm
Lens Type: Wide Angle
Size: 32mm x 32mm

AV Transmitter:
Frequency: 5.8GHz
Channel: 40
TX Poweer: 600mW
With Antenna
A key control, two-color LED status display


Body bottom with PCB scoreboard
PCB has TX60 battery port welding, soldering just need TX60 battery terminals fixed

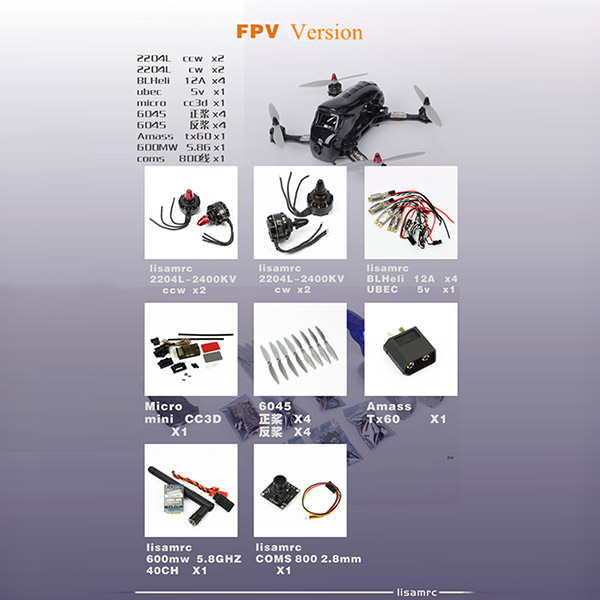

Package Included:
1 x KEEL-270 Frame Kit
4 x 2204L 2400KV Motor
4 x Oneshot125 12A ESC
1 x Lisam 600mw AV Transmitter with antenna
1 x 800TVL CMOS Camera
1 x CC3D flight control system
1 x UBEC 5V power supply module
4 x 6045 high-speed Propeller
1 x Amass TX60
